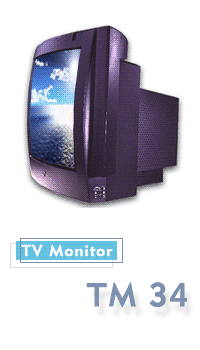

| CRT
/ Viewable image |
34"
/ 32", dark tinted face glasstriptrio pitch invar mask. |
| Striptrio pitch |
0.8mm ( center ) |
| Max.
Resolutions |
1024
X 768 |
| Face
Glass |
Darktinted |
| Imput
Signal |
VIDEO input : NTSC, PAL, SECAM standard signal, RGB analog
signal
PC Input : VGA / SVGA Standard
|
| Scanning
Frequency |
Horizontal multi-frequency
: 30 to 40 kHz
Vertical frequency : 50 to 120 Hz |
| Display
Area |
625 mm X 465 mm |
| Audio |
Loud speakers : 10 W X 2 ( RMS )
20
W subwoofer ( optional in-hourse installation) |
| |
|
| |
Smart surround
control
Balance control
Bass / Treble control |
| Connectors |
Y / Cb / Cr X 1 rear
S-Video X 1 front and X 2 rear
A / V-in X 1 front and X 2 rear
A / V-out X 1 rear
15-pin D-sub X 1 front and X 1 rear
Audio-in for PC sound card X 1 front and X 1 rear
Headphone jack
|
| Front Panel
Controls |
POWER, TV / AV, PC /
VIDEO, MENU, +/-, VOLUME +/-, CH +/- |
| Infrared
Remote Control Unit |
TV / AV, PC / Video,
SUR., VOL +/-, Display, MTS, Caption, CH +/-, Arrow keys, Menu,
Number keys, Mute and Recall. |
| OSD controls |
Brightness, Contrast, Color
temperature, Color adjustment, Degauss, Treble, Bass, Balance, Dyn.
Bass Boost, Speaker, V-Size, H-Size, V-Position, H-Position,
Pincushion, Pincushion Balance, Tilt, Parallelogram, Trapezoid. |
| Power
Input |
90 - 132 VAC, 60 Hz
180 - 264 VAC, 50 Hz |
| Power Consumption |
Operating maximum :
350 W
Standby Mode : 15 W |
|
Safety Regulations
EMI
|
UL,
CUL
FCC Class B, CE, C-Tick, BCIQ |
| Dimension |
886 mm X 670 mm X 608
mm |
| Weight |
approx. 75 kg |
|
|
