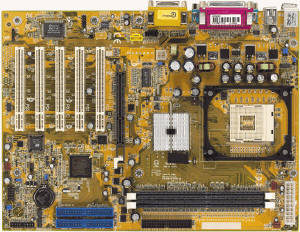

NB71-BC

Chipset

Intel 845E

- Intel 82845E Memory Controller Hub (MCH)

- Intel 82801BA I/O Controller Hub (ICH2)

CPU Socket

Socket 478

CPU Supported

Intel Pentium 4 processor (478-pin)

Supports up to 2.2GHz CPU speed

400/533MHz system data bus

Memory

Two 184-pin DDR SDRAM DIMM sockets

2.5V unbuffered PC1600 (DDR200) or PC2100 (DDR266) DDR SDRAM DIMM

Supports maximum of 2GB system memory using 64Mbit, 128Mbit, 256Mbit or 512Mbit technology

Double-sided x16 DDR SDRAM DIMM is not supported

Supports ECC function

PCI IDE

Supports ATA/33, ATA/66 and ATA/100 hard drives

PIO Mode 4 Enhanced IDE (data transfer rate up to 14MB/sec.)

Rear Panel I/O Ports

2 USB ports

2 DB-9 serial ports

1 DB-25 parallel port

1 PS/2 mouse port

1 PS/2 keyboard port

1 game/MIDI port

3 audio jacks: line-out, line-in and mic-in

Internal I/O Connectors

1 connector for 2 additional external USB ports

1 connector for IrDA interface

2 IDE connectors

Power Management

ACPI and OS Directed Power Management

Wake-On-Events include:

Wake-On-USB

Wake-On-Ring

Wake-On-LAN

Wake-On-Keyboard

Expansion Slots

1 AGP slot

5 PCI slots

Audio Onboard

18-bit stereo full-duplex codec with independent variable sampling rate

High quality differential CD input

True stereo line level outputs

Other features

Suspend to RAM

BIOS

Award BIOS

Form Factors

ATX, 4 layers

30.5cm (12.05") x 22.5cm (8.85")
