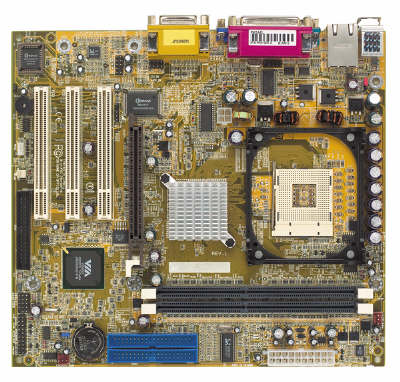

PM12-EL

Chipset

VIA P4M266/VT8235CD

CPU Socket

Socket 478

CPU Supported

Intel Pentium 4 processor (478-pin)

Supports up to 2.4GHz CPU speed

400MHz system data bus

Memory

Two 184-pin DDR DIMM sockets

Supports up to 2GB using PC1600 (DDR200) or PC2100 (DDR266) unbuffered DDR SDRAM DIMM, 2.5V type

Uses x8/x16 512MB technology

PCI IDE

Supports ATA/33, ATA/66, ATA/100 and ATA/133 hard drives

UDMA Modes 3, 4, 5 or 6 Enhanced IDE (data transfer rate up to 133MB/sec.)

Rear Panel I/O Ports

2 x USB 2.0/1.1

1 x LAN

1 x serial

1 x VGA

1 x parallel

1 x PS/2 keyboard

1 x PS/2 mouse

1 x game/MIDI

3 x audio jacks

I/O Connectors

1 connector for 2 additional external USB 2.0/1.1 ports

1 connector for 1 external serial port

1 connector for external line-out and mic-in jacks

2 internal audio connectors (AUX-in and CD-in)

1 connector for IrDA connector

2 IDE connectors

1 FDD connector

2 ATX power supply connector

1 Wake-On-LAN connector

1 Wake-On-Ring connector

CPU fan and chassis fan connectors

Power Management

ACPI and OS Directed Power Management

Wake-On-Event:

Wake-On-PS/2 Keyboard/Mouse

Wake-On-USB Keyboard/Mouse

Wake-On-Ring

Wake-On-LAN

Expansion Slots

1 AGP 4x/2x slot

3 PCI slots

Audio Onboard

Supports Microsoft DirectSound/DirectSound 3D

AC97 supported with full duplex, independent sample rate converter for audio recording and playback

Video Onboard

Integrated Savage8

LAN Onboard

Integrated LAN controller

BIOS

Award BIOS, 2Mbit flash memory

Form Factors

microATX, 4 layers

24.3cm (9.56") x 22cm (8.66")
