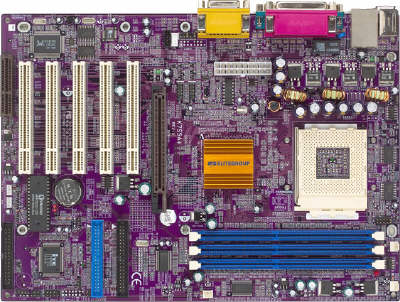

Click for enlarge picture Special Features

Suspend to RAM (STR)

Keyboard Power On

Hardware Monitoring

LAN / Modem Wake up

Processor

AMD® Athlon XP / Athlon / Duron CPU

Socket A

266 / 200MHz

Chipset

SiS® 745 Chipset integrated 1394A with DDR333

Super I/O

ITE IT8705F

Main Memory

3 DDR DIMMs

Supports DDR333 / DDR266 / DDR200

Max. 3GB

Sound

C-Media CMI9738/4CH AC'97 CODEC

LAN

RealTek RTL8100/B 10/100Mbps PCI LAN Chip (optional)

IDE

2 UltraDMA 100 / 66 / 33

USB

4 USB 1.1

Expansion Slots

5 PCI

1 AGP (4X)

1 CNR

Back Panel I/O Ports

1 PS/2 Mouse

1 PS/2 Keyboard

1 LAN

2 USB

1 Parallel

2 Serial

1 Game port

1 Line-in

1 Line-out

Microphone

Internal I/O Connectors

Front Panel Audio header

2 USB headers

LAN wake up connector

Modem wake up connector

SIR header

20-pin ATX power connector

BIOS

Award 2Mb Flash EEPROM

Form Factor

ATX

Board Size

220 mm x 304 mm
