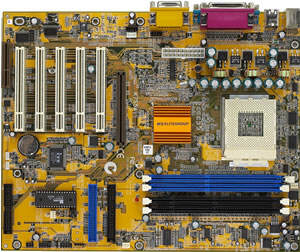

DDR mainboard for AMD® K7 socket A

processors with 266/200 MHz FSB

Integrated with the most advanced

technologies:

Suspend to RAM

Keyboard Power On

Magic Setting

Hardware Monitoring

LAN/Modem Wake

PROCESSORS

462 pin Socket A supports the AMD® (K7) processors

CHIPSET

SiS® 735 System Chipset

Super I/O and LPC - ITE8705

System Hardware Monitor: Built-in ITE8705

AC97 Audio Codec

SYSTEM BIOS

Award 2Mb Flash EEPROM

Supports Plug and Play 1.0A, AMP 1.2, Multi Boot, DMI

Full support for ACPI revision 1.0 specification

MEMORY

2 DDR DIMM sockets and 2 DIMM sockets support (can not be used simultaneously)

Two 184-pin DDR SDRAM (DDR266/DDR200) or

Two 168-pin 3.3V SDRAM (PC133/PC100)

Maximum: 1GB (DDR or SDRAM)

I/O INTERFACE

Supports Plug and Play function

PS/2 keyboard and PS/2 mouse connectors

Six USB Ports (Four USB connectors as header on board)

One - EPP/ECP mode parallel port

Two - 16550 high-speed serial I/O ports

Audio Ports (Line-in, Line-out, Mic-in, CD-in and game port)

Dual PCI IDE interfaces - support four IDE devices (PIO mode 4, DMA Mode 2, Ultra DMA 33/66/100)

Supports 360K~2.88M Byte, 3 Mode FDDs or LS120

ATX Power Supply Connector

ports, Headers and Others:

IrDA Cable header

Extra USB header

Two CD-In headers

Front Panel MIC/Line-out header

HDD LED, ACPI MSG LED, Reset Switch, Power Switch headers

CPU and Case Fan headers

LAN Card Wake Up/Internal Modem Ring Wake Up headers

RTC & BATTERY

SiS® 735 included 256 bytes of CMOS SRAM

With CMOS SRAM hardware clear jumper

EXPANSION SLOTS

5 PCI slots, 1 4X AGP slot, 1 CNR slot

FORM FACTOR & LAYERS

ATX (304mm*244mm), 4 Layers
