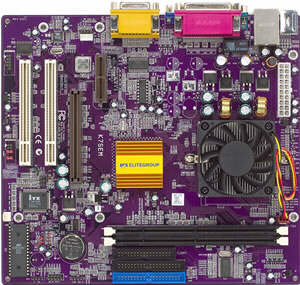

| K7SEM V3.0C V1.0
 |
| AMD® Duron processor onboard Integrated with the most
advanced
technologies:
Hardware Monitoring
|
| PROCESSORS |
Onboard AMD® Duron processors
Support 200MHz FSB |
| CHIPSET |
SiS® 730S single chipset with following features:
Integrated advanced 128-bit 2D/3D graphic engine
LPC I/O - ITE IT8705F
System Hardware Monitor: Integrated in ITE IT8705F
LAN: VIA® VT6103 (optional)
AC97 Audio Codec: VIA® VT1612A |
| SYSTEM BIOS |
AMI 2Mb Firmware Hub
Supports Plug and Play 1.0A, AMP 1.2, Multi Boot, DMI
Full support for ACPI revision 1.0 specification |
| MEMORY |
2 SDRAM DIMM Sockets
Two 168-pin DIMM sockets for 3.3V SDRAM memory module
Maximum: 1GB |
| I/O INTERFACE |
Back panel I/O ports
PS/2 keyboard and PS/2 mouse connectors
Dual USB 1.1 ports and a LAN connector
One - EPP/ECP mode parallel port
One - 16550 high-speed serial I/O port
One VGA Connector
Audio ports (Mic, Line-in, Line-out and game port)
Dual PCI IDE interfaces - support four IDE devices (PIO mode 4, DMA Mode 2,
Ultra DMA 66/100)
Supports 360K~2.88M Byte, 3 Mode FDDs or LS120
ATX Power Supply Connector
Ports, headers and others:
IrDA header
Internal PC speaker header
Extra mic. / speaker header
CD-ROM / DVD ROM audio input header
Extra USB ports
HDD LED , Reset Switch, Suspend LED, Power Switch headers
CPU and Chasis Fan headers |
| RTC & BATTERY |
Integrate CMOS SRAM in SiS® 730S
With CMOS hardware clear jumper |
| EXPANSION SLOTS |
| 2 PCI slots, 1 AGP slot, 1 AMR slot |
| FORM FACTOR & LAYERS |
| ATX (244mm*220mm), 4 Layers |
| SPECIAL FEATURES |
Supports wake on LAN, wake on modem, interrupt wake-up from
keyboard/mouse and keyboard power
on/off |
* Blue highlights means the difference between
version 1.X
|
