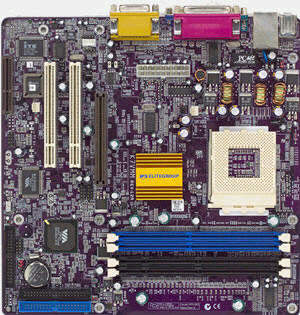

Integrated with VIA® VT6202 USB2.0 host

controller, this board provides the data

transfers of 480Mbps to satisfy the most

demanding peripheral and applications in

today's PC market.

PROCESSORS

462 pin Socket A supports the AMD® K7 processors

Full series of Athlon XP / Athlon / Duron processors

CHIPSET

VIA® KM266 (NB) & VT8233 (SB) Chipset

KM266 V-Link Host system controller and VT8233 V-Link Client to PCI/LPC bridge

- Peak Bandwidth 266MB/S 8-bit V-link Host Controller

- Integrated Savage 4 2D/3D Video Accelerator, 32MB shared memor

LPC I/O ¡V IT8705F

VIA® VT6202 USB 2.0 Host Controller (optional)

LAN: MAC Integrated in VT8233 & PHY on board

AC97 Audio Codec

Compliant with AC97 2.1 specification

SYSTEM BIOS

2 DDR DIMM sockets and 2 DIMM sockets support

Two 184-pin DDR SDRAM (DDR266/DDR200) or

Two 168-pin 3.3V SDRAM (PC133/PC100)

Maximum: 1GB (Unbuffered Memory)

MEMORY

AMI 2Mb Flash EEPROM

Supports Plug and Play 1.0A, AMP 1.2, Multi Boot, DMI

Support for ACPI revision 1.0 specification

I/O INTERFACE

Supports Plug and Play function

PS/2 keyboard and PS/2 mouse connectors

Dual USB Ports and LAN connector

One - EPP/ECP mode parallel port

One - 16550 high-speed serial I/O ports

VGA connector

Audio Ports (Line-in, Line-out, Mic-in, CD-in and game port)

Dual PCI IDE interfaces - support four IDE devices (PIO mode 4, DMA Mode 2, Ultra DMA 66/100)

Supports 360K~2.88M Byte, 3 Mode FDDs or LS120

ATX Power Supply Connector

Ports, Headers and Others:

IrDA header

Two extra USB ports (USB2, USB3 v1.1), (USB5 v2.0) optional

Front Panel MIC/Line-Out header

COM2 header

HDD LED, ACPI MSG LED, Reset Switch, Power Switch headers

CPU and Case Fan headers

LAN Card Wake Up / Modem Ring Wake-Up headers

RTC & BATTERY

VT8233 included 256 bytes of CMOS

With CMOS hardware clear jumper

EXPANSION SLOTS

2 PCI slots, 1 AGP slot, 1 CNR slot

FORM FACTOR & LAYERS

microATX (244mm x 244mm), 4 Layers
