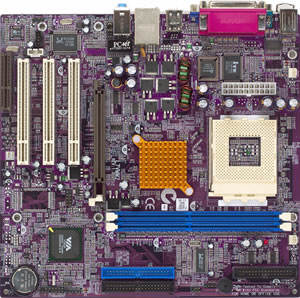

| L7VMM2
|
Socket A board that supports AMD® K7
processor up to 266/200MHz FSB
Integrated with the most advanced
technologies:
Internal/External AGP
Suspend to RAM
Hardware monitoring
USB 2.0
IEEE 1394 (optional) |
| PROCESSORS |
462 pin Socket A supports the AMD® K7 processors
Full series of Athlon XP / Athlon / Duron processors |
| CHIPSET |
VIA® KM266 (NB) & VT8235 (SB)
Chipset
KM266 V-link Host system controller and VT8235 V-link client to PCI/LPC
bridge
Peak bandwidth 266MB/S 8-bit V-link host controller
Integrated ProSavage 8 2D/3D video accelerator,
32MB shared memor
Integrated USB 2.0 host controller in VIA®
VT8235
LPC I/O - ITE IT8705F
VIA® VT6306 IEEE 1394 host controller
(optional)
LAN: 10/100 Mbps faster Ethernet (optional)
AC97 audio codec
Compliant with AC97 2.2 specification |
| SYSTEM BIOS |
Award 2Mb flash EEPROM
Supports Plug and Play 1.0A, AMP 1.2, Multi Boot, DMI
Full Support for ACPI revision 1.0 specification |
| MEMORY |
2 DDR DIMMs sockets support 2.5V DDR SDRAM (DDR266/DDR200)
Maximum: 1GB (Unbuffered memory)/ 2GB (Buffered memory) |
| I/O INTERFACE |
Supports Plug and Play function
PS/2 keyboard and PS/2 mouse connectors
1 EPP/ECP mode parallel port
1 16550 high-speed serial I/O ports
VGA connector
4 USB ports, 1 optional IEEE 1394 connector and 1
optional LAN connector
Audio ports (Line-in, Line-out, Mic-in and CD-in)
4 PCI IDE interfaces - support four IDE devices (PIO mode 4, DMA mode 2,
Ultra DMA 66/100/133)
Supports 360K~2.88M Byte, 3 mode FDDs or LS120
ATX power supply connector
Ports, headers and others:
IrDA header
2 extra USB Ports (USB3)
Front panel Mic./Line-out header
HDD LED, ACPI MSG LED, Reset switch, Power switch headers
CPU and case fan headers |
| RTC & BATTERY |
VT8235 included 256 bytes of CMOS
With CMOS hardware clear jumper |
| EXPANSION SLOTS |
| 3 PCI slots, 1 AGP slot, 1 CNR slot |
| FORM FACTOR & LAYERS |
| microATX (244mm*230mm), 4 Layers |
| * Blue highlights means the difference between L7VMM |
