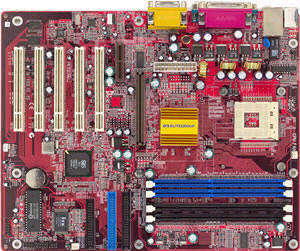

Socket 478 board that supports Intel?

Pentium? 4 processor up to 533MHz FSB

Integrated with the most advanced

technologies:

LAN wake up

Magic setting

Keyboard power on

USB 2.0 (SiS? 962L)

With USB 2.0 host controller integrated

in SiS? 962L chipset, this board

provides the data transfers of 480Mbps

to satisfy the most demanding peripheral

and applications in today's PC market.

PROCESSORS

Socket 478 supports the Intel? Pentium? 4 processor

CHIPSET

SiS? 645DX & SiS? 962L chipset

SiS? 645DX host/memory controller with DDR333 and AGP4X North bridge single chipset

SiS? 962L MuTIOL media I/O

Integrated USB 2.0 host controller

LPC I/O: ITE IT8705F

System Hardware Monitor: Built-in ITE IT8705F

LAN: MAC integrated in SiS? 962L & PHY on board (optional)

AC97 Audio Codec

Compliant with AC97 2.2 specification

SYSTEM BIOS

AMI 2Mb flash EEPROM

Supports Plug and Play 1.0A, AMP 1.2, multi boot, DMI

Support for ACPI revision 1.0 specification

MEMORY

2 DDR DIMM sockets and 2 DIMM sockets support (can not be used simultaneously)

Two 184-pin 2.5V DDR SDRAM (DDR333) or

Two 168-pin 3.3V SDRAM (PC133/PC100)

Maximum: 2GB (DDR SDRAM or SDRAM)

I/O INTERFACE

Supports Plug and Play function

PS/2 keyboard and PS/2 mouse connectors

4 USB ports and an optional LAN connector

1 EPP/ECP mode parallel port

2 16550 high-speed serial I/O ports

Audio ports (Line-in, Line-out, Mic-in, CD-in and game port)

4 PCI IDE interfaces - support four IDE devices (PIO mode 4, DMA mode 2, Ultra DMA 66/100/133)

Supports 360K~2.88M Byte, 3 mode FDDs or LS120

ATX power supply connector

Ports, headers and others:

IrDA header

Front panel Mic./Line-out header

2 extra USB ports (USB1)

HDD LED, Reset switch, Power switch headers

CPU and system fan headers

LAN card wake up header

RTC & BATTERY

SiS? 962L built-in 256 bytes of CMOS SRAM

With CMOS hardware clear jumper

EXPANSION SLOTS

5 PCI slots, 1 AGP slot, 1 AMR slot

FORM FACTOR & LAYERS

ATX (305mm*244mm), 4 Layers
