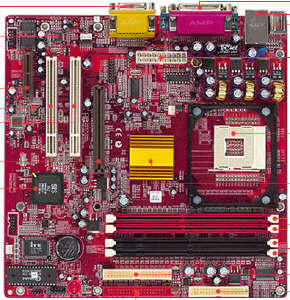

Click for enlarge picture Special Features

Magic Setting

Hardware Monitoring

Keyboard Power On

USB 2.0

IEEE 1394 (optional)

Processor

Intel® Pentium® 4 CPU

Socket 478

533MHz (over clock)

400MHz

Chipset

SiS® 650GL integrated VGA solution North Bridge

SiS® 962L South Bridge

Super I/O

ITE IT8705F

Main Memory

2 DDR DIMMs

2 SDRAM DIMMs

Supports DDR266 / DDR200

Supports PC133 / PC100

Max. 2GB (DDR SDRAM or SDRAM)

Graphics

SiS315E

Sound

C-Media CMI9738/4CH AC'97 CODEC

LAN

RealTek RTL8201L 10/100Mbps PHYceiver

IDE

2 UltraDMA 133 / 100 / 66 / 33

USB

6 USB 2.0 (Embedded in SiS962)

Expansion Slots

2 PCI

1 AGP (4X)

1 AMR

Back Panel I/O Ports

1 PS/2 Mouse

1 PS/2 Keyboard

1 Parallel

1 Serial

1 IEEE 1394A

1 LAN

4 USB

1 Line-in

1 Line-out

Microphone

Internal I/O Connectors

Front Panel Audio header

Extended USB module

IR header

20-pin ATX power connector

BIOS

AMI 2Mb Flash EEPROM

Form Factor

microATX

Board Size

244 mm x 244 mm
