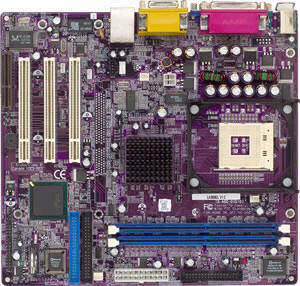

Intel® Pentium® 4 board that supports host

bus up to 400MHz

Integrated with the most advanced

technologies:

Suspend to RAM

LAN / Modem Wake Up

Magic Setting

Keyboard Power On

Hardware Monitoring

USB 2.0

PROCESSORS

Socket 478 supports the Intel® Pentium® 4 processor

CHIPSET

Intel® 82845GL & 82801DB -- Graphic memory controller hub (GMCH), I/O controller hub 4 (ICH4) &

firmware hub (FWH) with following features:

Integrated USB2.0 controller

Integrated 2D/3D graphic controller

LPC I/O: Winboard W83627HF-AW

LAN: RealTek 8100B

AC97 audio codec

Compliant with AC97 2.2 specification

SYSTEM BIOS

Award BIOS with Flash ROM in Firmware Hub (FWH)

Supports Plug and Play 1.0A, AMP 1.2, Multi Boot, DMI

Support for ACPI revision 1.0A specification

MEMORY

Two 184-pin DDR DIMM sockets for 2.5V DDR SDRAM (DDR266/DDR200)

Maximum: 2GB

I/O INTERFACE

Supports Plug and Play function

PS/2 keyboard and PS/2 mouse connectors

Dual USB Ports and LAN Connector

One - EPP/ECP mode parallel port

One - 16550 high-speed serial I/O port

One VGA port

Audio ports (Line-in, Line-out, Mic.-in, CD-in and game port)

Supports 360K~2.88M Byte, 3 mode FDDs or LS120

Dual PCI IDE interfaces - support four IDE devices (PIO mode 4, DMA mode 2, Ultra DMA66/100)

ATX12V Power Supply Connectors

Ports, Headers and Others:

IrDA header

COM2 header

Additional four USB ports (USB3 and USB4)

Front panel Mic./Line-out header

HDD LED, Sleep LED, Reset switch, Power switch headers

Modem-in header

Clear CMOS, BIOS write protect headers

CPU, power and system fan headers

LAN card wake up / Internal modem ring wake up headers

RTC & BATTERY

Intel® I/O Controller Hub 4 (ICH4) included 256 bytes CMOS SRAM

With CMOS hardware clear jumper

EXPANSION SLOTS

3 PCI slots, 1 CNR slot

FORM FACTOR

microATX (244mm*244mm), 4 Layers
