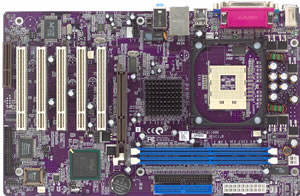

L4IGA2

L4IGA2 Ver. 1.0

Intel? Pentium? 4 board that supports host bus up to 533MHz

Integrated with the most advanced

technologies:

Suspend to RAM

Magic setting

LAN / modem wake up

Hardware monitoring

Keyboard power on

USB 2.0

PROCESSORS

Socket 478 supports the Intel? Pentium? 4 processor

CHIPSET

Intel? 82845G & 82801DB -- Graphic memory controller hub (GMCH), I/O controller hub 4 (ICH4) &

Firmware hub (FWH) with following features:

Integrated USB 2.0 controller

Integrated 2D/3D graphic controller

LPC I/O: Winboard W83627HF-AW

LAN: 10/100 Mbps faster Ethernet (optional)

AC97 audio codec

Compliant with AC97 2.2 specification

SYSTEM BIOS

Award BIOS with flash ROM in firmware hub (FWH)

Supports Plug and Play 1.0A, AMP 1.2, Multi boot, DMI

Support for ACPI revision 1.0A specification

MEMORY

2 DDR DIMM sockets support 2.5V DDR SDRAM (DDR266/DDR200)

Maximum: 2GB

I/O INTERFACE

Supports Plug and Play function

PS/2 keyboard and PS/2 mouse connectors

4 USB ports

1 LAN connector (optional)

1 EPP/ECP mode parallel port

1 16550 high-speed serial I/O port

1 VGA port

Audio ports (Line-in, Line-out, Mic-in, CD-in and game port)

Supports 360K~2.88M Byte, 3 mode FDDs or LS120

Dual PCI IDE interfaces - support four IDE devices (PIO mode 4, DMA mode 2, Ultra DMA66/100)

ATX 12V power supply connectors

Ports, headers and others:

IrDA header

Additional 2 USB ports (USB3)

Front panel Mic./Line-out header

HDD LED, Sleep LED, Reset switch, Power switch headers

Power fan, CPU fan and case fan headers

RTC & BATTERY

Intel? I/O controller hub 4 (ICH4) included 256 bytes CMOS SRAM

With CMOS hardware clear jumper

EXPANSION SLOTS

5 PCI slots, 1 AGP slot, 1 CNR slot

FORM FACTOR & LAYERS

ATX (304mm x 190mm), 4 Layers
