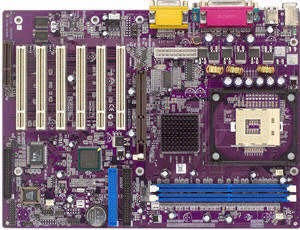

Intel® Pentium® 4 board that supports host

bus up to 533MHz (overclock)

Integrated with the most advanced

technologies:

Magic Setting

Hardware Monitoring

PROCESSORS

Socket 478 supports the Intel® Pentium® 4 processor

CHIPSET

Intel® 82845 & 82801BA -- Memory Controller Hub (MCH), I/O Controller Hub 2 (ICH2) & Firmware Hub

(FWH) with following features:

Supports 4X AGP (AGP 2.0 Specification), 1.5V only

Supports Ultra DMA100 (ATA100)

LPC I/O: ITE 8712F

HPT372 IDE RAID Controller with UDMA133 support (optional)

AC97 Audio Codec

Compliant with AC97 2.2 specification

SYSTEM BIOS

Award BIOS with Flash ROM in Firmware Hub (FWH)

Supports Plug and Play 1.0A, AMP 1.2, Multi Boot, DMI

Support for ACPI revision 1.0b specification

MEMORY

Two 184-pin DDR DIMM sockets to support

Two 2.5V DD266 SDRAM

Two 2.5V DDR333 SDRAM (overclock)

Maximum: 2GB (Unbuffered memory)

I/O INTERFACE

Supports Plug and Play function

PS/2 keyboard and PS/2 mouse connectors

Dual USB ports

One - EPP/ECP mode parallel port

Two - 16550 high-speed serial I/O ports

Audio ports (Line-in, Line-out, Mic-in, CD-in and game port)

Supports 360K~2.88M Byte, 3 mode FDDs or LS120

Dual PCI IDE interfaces - support four IDE devices (PIO mode 4, DMA mode 2, Ultra DMA66/100)

ATX12V power supply connector

Ports, Headers and Others:

IrDA header

Two extra USB ports (USB1)

Front panel Mic./Line-out header

Chassis open detector header

HDD LED, ACPI MSG LED, Reset switch, Power switch headers

CPU, case and power supply fan headers

RTC & BATTERY

Intel® I/O Controller Hub 2 (ICH2) included 256 bytes of CMOS SRAM

With CMOS hardware clear jumper

EXPANSION SLOTS

6 PCI slots, 1 AGP slot, 1 CNR slot

FORM FACTOR & LAYERS

ATX (304mm*244mm), 4 Layers
