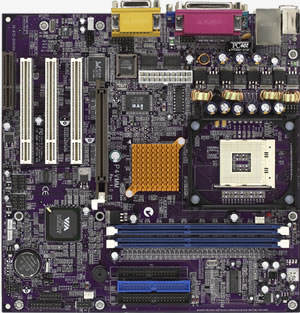

P4VMM
VIA® VT8753 & VT8233 芯片组 (P4X266/A)
支持 Pentium® 4 处理器（478针）
两条 184线 DDR 插槽最大支持 2GB
AC97 声卡
集成 RealTek 8100/B 网络芯片
P4VMM 主板是一款 Micro-ATX 主板，采用了 4层印刷电路板，规格 240 mm x 244 mm.
这款主板支持400MHz前端总线的 Pentium® 4 处理器 . P4VMM 采用 VIA® P4M266 芯片组 支持最新的高速DDR
SDRAM, AC 97 声卡.
Note: SDRAM依靠 100MHz 或者 133MHz 提供 800Mbps 或者 1Gbps 数据传输率. DDR
SDRAM提供1.6Gbps 或者 2.1Gbps 传输率.
处理器
一个 478 插槽支持
Intel® Pentium® 4 处理器 (478针)
芯片组
VIA® P4M266(NB) & VT8233(SB)
VT8751 V-Link Host system 控制器 and VT8233 V-Link Client to PCI/LPC
bridge
Peak Bandwidth 266MB/S 8-bit V-link Host 控制器
集成 Savage 4 2D/3D 视频加速
LPC I/O - IT8705F
网卡: RealTek 8100/B
AC97 声卡
兼容AC97 2.2规范
内存
两条 184线 DDR 内存插槽 支持 2.5V DDR SDRAM (DDR266/DDR200)
最大内存: 1GB(Unbuffered 内存) / 2GB(Buffered 内存)
系统BIOS
Award 2Mb Flash EEPROM
支持即插即用 1.0A, APM 1.2, Multi Boot, DMI
完全支持 ACPI 1.0 规范
输入输出界面
支持即插即用功能
PS/2 键盘鼠标接口
两个 USB 端口和网卡接头
一个并口
一个串口
显示接口
声卡接口 (Line-in, Line-out, Mic-in, CD-in 和游戏端口)
两个 PCI IDE 界面 - 支持四个 IDE 设备 (PIO mode 4, DMA Mode 2, Ultra DMA 66/100)
支持 360K~2.88M Byte, 3 Mode FDDs 或者 LS120
ATX 电源接口
端口，接头和其他
红外线接头
四个扩展 USB 接头 (USB1/2 或者 LUSB1/2)
前置面板MIC/Line-Out 接头
COM2 接头
硬盘灯，电源管理信号灯，复位开关，电源开关接头
CPU 和机箱风扇接头
网卡唤醒/内置 Modem 铃声唤醒
实时时钟控制器
VT8233 包括 256 字节 CMOS
硬件清除 CMOS
扩展插槽
3 PCI 插槽, 1 AGP 插槽, 1 CNR 插槽
规格
microATX (244mm*244mm), 4 层
VIA® VT8753 & VT8233 Chipset (P4X266/A)
Socket 478 for Pentium® 4 processors
Two 184-pin DDR DIMMs with DDR SDRAM support, up to 2GB
AC97 Audio Codec on board
RealTek 8100/B LAN Chip on board
P4VMM mainboard is a Micro-ATX mainboard that uses a 4-layer printed
circuit board and measures 240 mm x 244 mm. The mainboard features a c
that accommo-dates Pentium® 4 processors supporting frontside bus (FSB)
speeds up to 400 MHz. The P4VMM incorporates the VIA® P4M266 chipset which
combines support for the new high-bandwidth Double Data Rate (DDR) SDRAM,
and the AC 97 audio codec.
Note: SDRAM provides 800Mbps or 1Gbps data transfer depending on
whether the bus is 100MHz or 133MHz. Double Data Rate SDRAM (DDR SDRAM)
doubles the rate to 1.6Gbps or 2.1Gbps by transferring data on both the
rising and falling edges of the clock. DDR SDRAM uses additional power and
ground lines and requires 184-pin DIMM modules rather than the 168-pin
DIMMs used by SDRAM.
PROCESSORS
One Socket 478 supports the
Intel® Pentium® 4 processor (478pins)
CHIPSET
VIA® P4M266(NB) & VT8233(SB)
VT8751 V-Link Host system controller and VT8233 V-Link Client to
PCI/LPC bridge
Peak Bandwidth 266MB/S 8-bit V-link Host Controller
Integrated Savage 4 2D/3D Video Accelerator
LPC I/O - IT8705F
LAN: RealTek 8100/B
AC97 Audio Codec
Compliant with AC97 2.2 specification
MEMORY
Two 184-pin DDR DIMM sockets for 2.5V DDR SDRAM (DDR266/DDR200)
Maximum: 1GB(Unbuffered Memory) / 2GB(Buffered Memory)
SYSTEM BIOS
Award 2Mb Flash EEPROM
Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI
Full Support for ACPI revision 1.0 specification
I/O INTERFACE
Supports Plug and Play function
PS/2 keyboard and PS/2 mouse connectors
Dual USB ports and LAN headers
One - EPP/ECP mode parallel port
One - 16550 high-speed serial I/O ports
VGA Connector
Audio Ports (Line-in, Line-out, Mic-in, CD-in and game port)
Dual PCI IDE interfaces - support four IDE devices (PIO mode 4, DMA
Mode 2, Ultra DMA 66/100)
Supports 360K~2.88M Byte, 3 Mode FDDs or LS120
ATX Power Supply Connector
ports, Headers and Others:
IrDA header
Four additional Extra USB headers (USB1/2 or LUSB1/2)
Front Panel MIC/Line-Out header
COM2 header
HDD LED, ACPI MSG LED, Reset Switch, Power Switch headers
CPU and Case Fan headers
LAN Card Wake Up/Internal Modem Ring Wake Up headers
RTC & BATTERY
VT8233 included 256 bytes of CMOS
With CMOS SRAM hardware clear jumper
EXPANSION SLOTS
3 PCI slots, 1 AGP slot, 1 CNR slot
FORM FACTOR
microATX (244mm*244mm), 4 Layers
