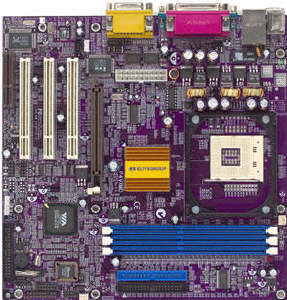

Socket 478 board that supports Intel?

Pentium? 4 processor up to 533MHz FSB

Integrated with the most advanced

technologies:

Suspend to RAM

LAN / modem wake up

Magic setting

Keyboard power on

Hardware monitoring

Smart card

PROCESSORS

Socket 478 supports the Intel? Pentium? 4 processor

CHIPSET

VIA? P4X266A (NB) & VT8233A (SB)

P4X266A V-link host system controller and VT8233A V-link client to PCI/LPC bridge

Peak bandwidth 266MB/S 8-bit V-link host controller

LPC I/O: ITE IT8705F

System Hardware Monitor: Integrated in ITE IT8705F

LAN: 10/100 Mbps faster Ethernet (optional)

AC97 audio codec

Compliant with AC97 2.2 specification

SYSTEM BIOS

Award 2Mb Flash EEPROM

Supports Plug and Play 1.0A, AMP 1.2, Multi Boot, DMI

Support for ACPI revision 1.0 specification

MEMORY

3 DDR DIMM sockets support 2.5V DDR SDRAM (DDR266/DDR200)

Maximum: 1.5GB (Unbuffered Memory)

I/O INTERFACE

Supports Plug and Play function

PS/2 keyboard and PS/2 mouse connectors

Dual USB ports and an optional LAN header

One - EPP/ECP mode parallel port

Two - 16550 high-speed serial I/O ports

Audion ports (Line-in, Line-out, Mic-in, CD-in and game port)

Dual PCI IDE interfaces - support four IDE devices (PIO mode 4, DMA mode 2, Ultra DMA 66/100/133)

Supports 360K~2.88M Byte, 3 mode FDDs or LS120

ATX power supply connector

Ports, headers and others:

IrDA header

Four extra USB headers (USB1 or USB2)

Front panel Mic./Line-out header

Smart card reader header

HDD LED, ACPI MSG LED, Reset switch, Power switch headers

CPU and case fan headers

LAN Card wake up/Internal modem ring wake up headers

RTC & BATTERY

VT8233A included 256 bytes of CMOS

With CMOS hardware clear jumper

EXPANSION SLOTS

3 PCI slots, 1 AGP slot, 1 CNR slot

FORM FACTOR & LAYERS

microATX (244mm*244mm), 4 Layers
