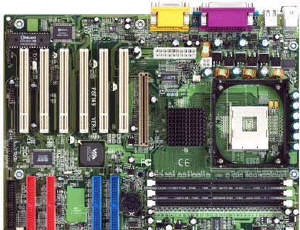

| P8F149 |
 |
| FSB |
Supports 400MHz |
| Main Chipsets |
VIA PX4266A (model Number 8753A)/VT8233A chipsets |
| Audio chipsets |
Realtek ALC650(AC-Link) |
| Supports 6CH DAC for AC3 5.1 CH purpose |
| Professional digital audio interface supporting 24-bit SPDIF
OUT |
| Multi I/O |
2 * UDMA ATA 33/66/100 Bus master IDE Ports |
| |
1 * FDD Port, 1 * EPP/ECP Parallel Port, 2 * Com
Port |
| |
PS/2 Mouse and Keyboard on board |
| |
1 * Joystick, Line-in, Line-out, MIC on board |
| |
2 * USB Ports on board, 2*USB Ports by cable |
| |
1* IrDA header ready. |
| Main Memory |
3 * DDR, up to 3GB |
| Expansion Slots |
6 * PCI Slots, 1 * AGP 4x Slot |
| Clock Support |
From 100~150MHz (Incerasement by 1MB) |
| System Monitoring |
CPU Temperature warning and system temperature detection |
| |
CPU and system voltage detection |
| |
CPU and secondary fan RPM detection |
| |
Vccp ( CPU core voltage ) |
| |
5/12V ( power supply’s 5/12 volt ) |
| Form Factor |
ATX |
| Board Size |
22.0*30.5(cm) |
| Feature |
Power on by Wake on LAN (WOL) |
| |
Suspend to RAM (STR) |
| |
Suspend to Disk (STD) |
| |
Wake-on-LAN function |
| |
Soft-off power |
