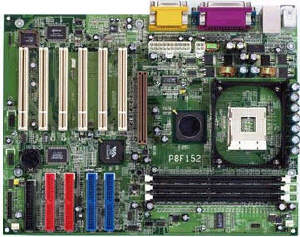

| P8F152 |
 Support the Intel Pentium 4 Northwood processor
in the 478-pin
Support the Intel Pentium 4 subset of the Enhanced Mode
Scaleable Bus Protocol.
Support 533MHz System Bus |
| FSB |
Supports 533MHz |
| Main Chipsets |
VIA P4X333 (model Number VT8754)/VT8235 chipsets |
| Audio chipsets |
Realtek ALC650(AC-Link) |
| Supports 6 CH DAC for AC3 5.1 CH purpose |
| Professional digital audio interface supporting 24-bit SPDIF
OUT |
| Multi I/O |
2 * UDMA ATA 33/66/100/133 Bus master IDE Ports |
| |
1 * FDD Port, 1 * EPP/ECP Parallel Port, 2 * Com
Port |
| |
PS/2 Mouse and Keyboard on board |
| |
1 * Joystick, Line-in, Line-out, MIC on board |
| |
2 * USB Ports on board, 2*USB Ports by cable |
| Main Memory |
3 * DDR, up to 3GB |
| Expansion Slots |
6 * PCI Slots, 1 * AGP 4x Slot |
| Clock Support |
From |
| System Monitoring |
CPU Temperature warning and system temperature detection |
| |
CPU and system voltage detection |
| |
CPU and secondary fan RPM detection |
| |
Vccp ( CPU core voltage ) |
| |
5/12V ( power supply’s 5/12 volt ) |
| Form Factor |
ATX |
| Board Size |
23.0*30.5(cm) |
| Feature |
Support 400/533MHz FSB |
| |
200/266/333MHz System Bus settings |
| |
Integrated 6 Channel Surround Sound AC-97 Audio |
| |
Support ATA 100/133 |
| |
Support USB 2.0, 6 USB Ports |
| |
RAID (option) |
