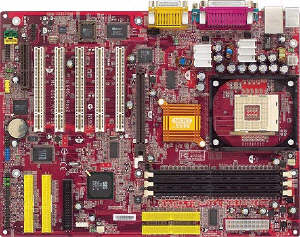

MS-6567 645E Max2-L, 645E Max2-LRU
◊
• LAN (RJ-45) Jack (For 645E Max2-L, 645E Max2-LRU)
• ATA133 Raid 0, 1, 0+1 (For 645E Max2-LRU)
• USB 2.0 x 4 supported by NEC D720100 (For 645E Max2-LRU)
CPU
Supports Intel® Pentium® 4 processor in the 478 pin package.
FSB @ 400/533 MHz (100/133 MHz QDR)
Supports 1.3 ~ 2.4GHz and up.
Chipset
SIS® 645DX (702 BGA) Chipset
- Supports 64-bit P4 processors at 533MHz
- Supports 32-bit AGP 4x/2x slot
- Supports 64-bit high performance DDR333/DDR266 memory
controller
- Supports bi-directional 16-bit data bus with 533MHz
bandwidth MuTIOL
SIS® 961B (371BGA) Chipset
- Supports Dual-IDE ATA 66/100/133
- AC'97 link controller
- Low pin count interface for SIO
FSB
FSB @ 400/533 MHz (100/133 MHz QDR)
Main Memory
- Three 184-pin DDR DIMM sockets
- Maximum memory size up to 3GB without ECC
Slots
- One AGP (2x/4x) universal slot
- Five 32-bit Master PCI slots (PCI v2.2)
- One CNR (Communication Network Riser) slot
On-Board IDE
- Dual IDE controllers integrated in SiS 961B
- Supports PIO, Bus Master, Ultra DMA 66/100/133 operation
- Can connect up to 4 IDE devices
- ATA133 Raid 0, 1, 0+1 supported by Acard Achip ATP865
(Optional)
Audio
* AC'97 link controller integrated in SiS 961B
* 6-channel S/W audio codec ALC 650
- Compliance w/ AC'97 v2.2 spec.
- Meets PC2001 audio performance requirement
- Supports SPDIF Out
Network
LAN (RJ-45) Jack (Optional)
On-Board Peripherals
On-Board Peripherals include:
* External:
- PS2 Keyboard + PS2 Mouse
- USB x 2
- Parallel + Serial 2
- Game port + Audio (Mic-in, Line-in, Line-out)
- RJ45 (LAN)
* Internal:
- Front Panel (2 x 5) w/ Intel pin definition
- Front USB (2 x 5) w/ Intel pin definition x 2
- Front Audio (2 x 5) w/ Intel pin definition
- Front IR (2 x 5) w/ Intel pin definition
- IDE x 4, Floppy, ATX power connector
- CPU Fan, System Fan, Audio (CD-in)
- USB 2.0 (2 x 5) x 4 supported by NEC D720100 (optional)
BIOS
- 2MB AMI BIOS w/ PnP, ACPI, SMBIOS 2.3, Green and Boot
Block
- Provides DMI2.0, WfM2.0, WOR and SMBus for system
management.
Dimension
30.5 cm(L) x 23.0 cm(W) ATX Form Factor
Mounting
6 mounting holes.
