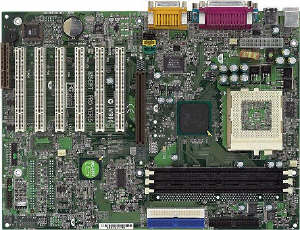

MS-6337 Ver5.0

◊

CPU

* Support Socket 370 for Intel® Pentium®III / Tualatin

(FC-PGA / FC-PGA2) Processor

* Supports 500MHz ~ 1.2GHz

Chipset

Intel® 815EP (544BGA) Chipset

-- AGP 4x/2x universal slot

-- Supports 66/100/133MHz FSB

Intel® ICH2 (241BGA) Chipset

-- AC'97 Controller Integrated

-- 2 full IDE channels, up to ATA100

-- Low pin count interface for SIO

FSB

Supports 66/100/133MHz FSB

Main Memory

Supports three 168-pin DIMM sockets.

Supports a maximum memory size of 256MB or 512MB SDRAM

Slots

* One CNR (Communication Network Riser).

* One AGP (Accelerated Graphics Port) 2x/4x slot.

* Six PCI 2.2 32-bit Master PCI Bus slots. All PCI slots can be

used as master.

-- Supports 3.3v/5v PCI bus Interface.

On-Board IDE

* An IDE controller on the ICH2 chipset provides IDE HDD /

CD-ROM with PIO, Bus Master and Ultra DMA 66 / 100

operation modes.

* Can connect up to four IDE devices.

Audio

• ICH2 chip integrated

-- Supports 2 Channel Audio

On-Board Peripherals

On-Board Peripherals include:

-- 1 Floppy port supports 2 FDD with 360K, 720K, 1.2M, 1.44M

and 2.88Mbytes.

-- 2 Serial ports (COM A + COM B)

-- 1 Parallel port supports SPP/EPP/ECP mode

-- 4 USB ports (Rear x 2 / Front x 2)

BIOS

* The mainboard BIOS provides "Plug & Play" BIOS which

detects the peripheral devices and expansion cards of the

board automatically.

* The mainboard provides a Desktop Management Interface

(DMI) function which records your mainboard specifications.

Dimension

30.5 cm(L) x 22.5 cm(W) ATX Form Factor

Mounting

6 mounting holes.
