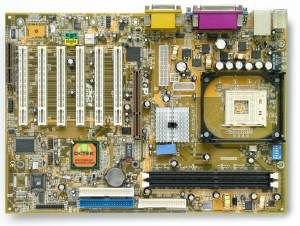

Rhino i845GL-A4P |
 |
|
Chipset |
Intel i845GL (i845GL
+ ICH4) |
| CPU
Socket |
Socket 478 |
| CPU
Supported |
Intel Pentium 4 400
FSB |
| On
Board Display |
Integrated
128-bit 3D/2D Graphic Engines.
Max. 48Mb Frames Buffer chared with system Memory
Via Dynamic Video Memory Technology (DVMT).
Hardware Motion compensation for S/W MPEG2 Decode (DVD).
Integrated 24-bit 350 RAMDAC.
Resolution up to 2048 X1536.
DirectX & OpenGL API Support.
Dual Display / TV-OUT /DVI with ADD (AGP Digital Display).
TV/DVI Card Pluged in AGP slot. |
|
Memory |
2 x 184 pins DDR DIMM
socket |
| Slot |
1 x CNR, 1 x
AGP(Support ADD card only), 6 x PCI |
| I/O |
2 x NS16C550A
compatible UARTs
1 x SPP/ECP/EPP parallel port
6 x USB( Support 1 x USB2.0 ), 1 x PS/2 keyboard + 1 x PS/2 mouse |
| IDE |
On-board Bus
Mastering IDE Controller supports UDMA33/66/100 |
|
Hardware Monitoring |
Monitoring Processor
and System temp. / FAN speed control |
|
Audio on board |
AC97' Audio
Controller
Game/MIDI port, Mic in / Line in / Speaker |
| BIOS |
4MB Flash, ACPI, DMI
2.0 PnP, PM events, Wol |
|
Power connector |
ATX Power Connector |
|
Board Size |
ATX form factor
(303x244)mm |
