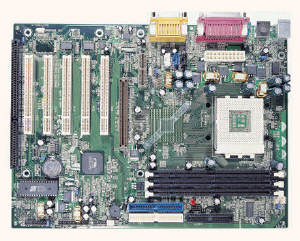

KinetiZ
7V
注：本页尾还有个版本。 |
 |
|
ITEM
|
DETAIL |
| 芯片组 |
VIA KM-133 芯片组
北桥:VIA VIA KM-133
南桥:VIA VIA686B |
| 总线类型 |
3
个 PCI 区域总线槽
1 个 AMR
1 个 ISA
1 个 AGP |
| CPU |
支持 Socket A AMD
Athlon; 和 Duron 处理器
AMD Athlon: 支持750/800/850/900/950/
1.1GHz 或更新
AMD Duron: 支持 600/650/700/800/850MHz 或更新 |
| 内建声卡设备 |
板带AC'97音频设备
符合 AC’97 2.1,16 位立体声解码硬声卡
|
| 电源管理 |
符合 ACP1.0和APM高级规范
支持 S1,S4,S5 ACPI 状态
支持“挂起到内存”功能
|
| 图形处理 |
整合
S3 Savage 3D 图形控制芯片,共享系统内存结构,支持AGP4X界面，通用AGP
插槽，支持3.3v/1.5v AGP卡，最高传输速率达到1GB/sec，如果插槽有卡插入则自动屏蔽主板集成芯片 |
| 系统内存 |
三个
RIMM 槽，支持 SDRAM 到1.5GB
支持 66/100/133MHz 同步 DRAM. |
| CPU
总线速度 |
200
MHz FSB |
| BIOS |
经许可的
Award BIOS
2 兆位
Flash ROM，
支持即插即用
完全支持 ACPI 标准及操作系统直接能源管理 |
| 存储设备 |
两个
PCI 总线型IDE 的接口支持 4 个IDE 设备，包括 IDE
硬盘和光驱
支持 ATA 66/100
支持LS-120 软驱和 ZIP 驱动器 |
| I/O
特性 |
IrDA
口支持到 115.2KB 每秒的传输率
4个USB 端口支持 USB1.1(2 USB 在板上的I/O端口,2 USB
插口在板上)
1个扬声器输出接口，1个线性输入插孔，1个麦克风输入插孔以及1个游戏接口;
一个15针的VGA接口;
一个 PS/2 键盘口
一个 PS/2 鼠标口
所有的 I/O 端口都支持 BIOS 屏敝
两个高速串口, 兼容 16550 快速 UART 口
一个加强型并口 (SPP/ECP/EPP) |
| QDI
创新技术 |
支持
LogoEasy
支持 ManageEasy
支持 RecoveryEasy
支持无敌锁 (Bios ProtectEasy) |
| 领先功能 |
支持调制解调器开机
支持网络唤醒
具有 Trend ChipAwayVirus 防病毒功能 |
| 主板尺寸 |
ATX
305 X 244mm |
KinetiZ 7V
|
 |
|
ITEM
|
DETAIL
|
|
Chipset |
VIA
KM-133 chipset
North bridge:VIA KM-133
South bridge:VIA VT82C686B |
|
Bus Type |
5 PCI slots
1 AMR
1 AGP
1 ISA |
|
CPU |
Support
Socket A AMD Athlon and Duron Processors
AMD Athlon Processors at 750/800/850/900/950MHz and 1G/1.1G/1.2GHz
AMD Duron Processors at 600/650/700/750/800/850/900MHz 1.0/1.1GHz
|
|
System Memory |
Three 168 pin
3.3V PC133 DIMM sockets
Supports up to 1.5G SDRAM
Supports 66/100/133 MHz Synchronous DRAM |
|
Power Management |
ACPI V1.0 and
APM compliant
Supports S0, S1, S3, S5 ACPI power status
Support Suspend to RAM |
|
USB |
4 USB ports
(2 for I/O panel and 2 for front panel)
USB 1.1 specification compliant |
|
Bus Speed |
200MHz FSB
Overclock to 266MHz |
|
BIOS |
2 Mbit Flash
ROM
Licensed advanced AWARD BIOS
Supports Plug and Play
Supports ACPI and OS directed power management |
|
Storage system |
Two PCI
Master IDE ports support up to 4 IDE devices
Supports ATA 100
One floppy port support up to two 3.5¡± or 5.25¡± floppy drives
( 360K/720K/1.2M/1.44M/2.88M)
Supports LS-120 floppy disk drive and ZIP drive |
|
I/O Feature |
2 High Speed
Serial Ports (16550 Fast UART Compatible)
1 Enhanced Parallel Port Support EPP/ECP/SPP
4 USB ports support USB 1.1
1 PS/2 keyboard port
1 PS/2 mouse port
1 Speaker-out/1 Line-in/1 Mic-in jacks
1 Game port/MIDI port
1 15-pin VGA connector
IrDA port support up to 115.2Kb/s transfer rate
All I/O ports can be enabled/disabled by BIOS setup |
|
Graphics |
Integrated S3
Savage 3D graphics engine in chipset
Share memory architecture
Provides AGP 4X interface
Universal AGP slot, Support 3.3v/1.5v AGP card
Transfer rate up to 1 GB/sec
Automatically disable internal graphics when add-in graphics card is
present. |
|
Onboard Audio |
AC'97 2.1
Compliant,
16-bit Stereo Codec |
|
Advanced Feature |
Wake up on
LAN
Wake up on Modem
Trend ChipAwayVirus on Guard |
|
QDI Innovations |
RecoveryEasy, BIOS-ProtectEasy,
ManageEasy, LogoEasy |
|
System Health Monitoring |
CPU
temperature, System temperature, CPU fan speed
Chassis fan speed, 5 System Voltages |
|
Board Size |
ATX: 305X244mm |
