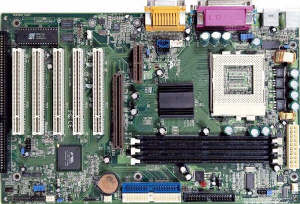

Advance
10T |
 |
|
ITEM
|
DETAIL
|
Chipset |
VIA
VT82C694T North Bridge
VIA VT82C686B South Bridge |
|
Bus Type |
1 AGP
5 PCI
1 ISA
1 AMR |
|
CPU |
Support
Intel Tuluatin-256/ Pentium III at 1.13GHz-1.26GHz
Support Socket 370 processors
Intel Pentium III FC-PGA processors at
533/550/600/667/700/733/750/800/850/866/900/933MHz and 1.0/1.1/1.2GHz
Support Intel Celeron CPU at 533/566/600/633/667/700/733/766/
800/900/1000/1100MHz
VIA Cyrix-III(Samual-II) at 800MHz |
|
System Memory |
Three
168-pin 3.3V PC133 DIMM sockets
Support up to 1.5GB SDRAM
Support 66/100/133MHz Synchronous DRAM and 66MHz EDO DRAM |
|
Power Management |
ACPI V1.0
and APM compliant
Support S0,S!,S3,S5 ACPI power status
Suspend to RAM and Suspend to Disk Support
Auto Adiust FAN speed in the difference power status |
|
USB |
4 USB
ports
USB 1.1 specification compliant |
|
Bus Speed |
66/100/133MHz
FSB |
|
BIOS |
Licensed
advanced AWARD BIOS
2Mbit Flash ROM
Support Plug and Play
Support ACPI and OS Directed Power Management |
|
Storage system |
Two PCI
Master IDE ports support up to 4 IDE devices
Support "Ultra DMA33/66/100"
One floppy port support up to two 3.5" or 5.25" floppy
drives(360K/720K/1.2M/1.44M/2.88M)
Support LS-120 floppy disk drive and ZIP drive |
|
I/O Feature |
All I/O
ports can be enabled/disabled by BIOS setup
1 Speaker+1 Line in+1 Mic
1 PS/2 keyboard prot
1 PS/2 mouse port
2 high speed Serial Ports(16550 fast UART compatible)
1Enhanced parallel Port (SPP, EPP, ECP)
IrDA port supports up to 115.2KB/sec transfer rate |
|
Graphics |
AGP 4X
Support
Universal AGP Slot |
|
System Health Monitoring |
CPU
temperature, system temerature, CPU fan speed and chassis fan speed, 5
system voltages |
|
Onboard Audio |
AC'97 2.1
Compliant
16-bit Stereo Codec |
|
Advanced Feature |
Supports
wakeup on Lan/Modem
Trend ChipAway Virus on Guard
|
|
QDI Innovative Technology |
BIOS-ProtectEasy,
ManageEasy, BootEasy, StepEasy, LogoEasy,
SpeedEasy, RecoveryEasy |
|
Board Size |
305 x 210
mm (ATX) |
