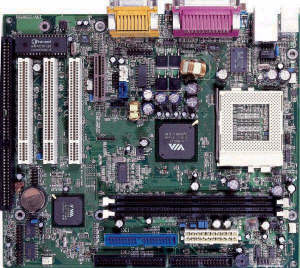

Advance 6T |
 |
|
ITEM
|
DETAIL
|
Chipset |
VIA
Ple-133T:
North Bridge:VIA8601T
South Bridge:686B |
|
Slots |
3 PCI
1 ISA
1 AMR |
|
CPU |
Support
Socket 370 processors
Intel Pentium III Tualatin Processor 1.13G-1.26GHz
Intel Celeron Tualatin Processor 1.2G,1.3G,1.4GHz
Intel Coppermine-256 Pentium III at 533MHz, 550MHz, 600(1)MHz, 600(2)MHz,
667MHz, 700MHz, 733MHz, 750MHz, 800(1)MHz, 800(2)MHz, 850MHz, 866MHz,
900(2)MHz, 933MHz, 1GHz, 1.1GHz.
Support Intel Celeron CPU at 533MHz, 566MHz, 600MHz, 633MHz, 667MHz, 700MHz,
733MHz, 766MHz, 800MHz, 850MHz, 900MHz, 950MHz, 1GHz , 1.1GHz.
VIA Cyrix-III processors at 800MHz |
|
System Memory |
Two 168
pin 3.3v DIMM sockets
Support 100/133MHZ |
|
Power Management |
ACPI V1.0
and APM compliant
Support S0, S1, S5 ACPI power status |
|
USB |
4 USB
ports ( 2 for I/O panel and 2 for front panel)
USB 1.1 specification compliant |
|
Bus Speed |
66/100/133 MHZ |
|
BIOS |
2 Mbit
Flash ROM
Licensed advanced AWARD BIOS
Supports Plug and Play
Supports ACPI and OS directed power management |
|
Storage system |
Two PCI
Master IDE ports support up to 4 IDE devices
Supports ATA 66/100
One Floppy port supports up to two 3.5" or 5.25" floppy drives
(360K/720K/1.2M/1.44M/2.88M)
Supports LS-120 floppy disk drive and ZIP drive |
|
I/O Feature |
1 high
speed Serial Ports (other one can optional in manufactory )
1 Enhanced Parallel Port supports EPP/ECP/SPP mode
1 PS/2 keyboard port and 1 PS/2 mouse port
1 Speaker + 1 Line in + 1 Mic jack
1 Gameport/MIDI
1 15pin VGA connector
IrDA port supports up to 115.2Kb/s transfer rate
All I/O ports can be enabled/disabled by BIOS setup |
|
Graphics |
Integrate
Trident 3D graphics engine in chipset
Share memory architecture (4/8MB) |
|
System Health Monitoring |
CPU
temperature, System temperature, CPU fan speed,
Chassis fan speed, 5 System Voltages |
|
Onboard Audio |
Onboard
AC' 97 2.1 audio codec
16-bit Stereo Codec |
|
Onboard LAN |
Realtek
8100 (A6T-L only) |
|
Advanced
Feature |
Wake up
on Modem
Trend ChipAway Virus on Guard
AC power resume |
|
QDI Innovatios |
BootEasy,
LogoEasy,
RecoveryEasy, BIOS-ProtectEasy,
ManageEasy. |
|
Form Factor |
MATX:
210x244 |
|
