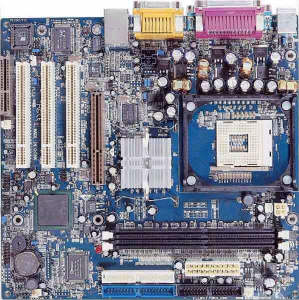

PlatiniX
1E |
 |
|
ITEM
|
DETAIL |
|
Chipset |
North Bridge: Intel 82845E MCH
South Bridge: Intel 82801DB ICH4 |
|
Slots |
3 PCI+1 CNR |
|
CPU |
Supports Intel
Pentium 4(Willamette-478 and Northwood-478)
1.5G/1.6G/1.7G/1.8G/1.9G/2.0G/2.2G/2.26G/2.4G/2.53G |
|
System Memory |
2 X DDR SDRAM
Supports DDR 200/266
The largest total memory is up to 2GB |
|
Bus Speed |
400MHz/533MHz
|
|
BIOS |
2 Mbit
firmware Hub
Licensed advanced Award (phoenix) BIOS
Support Plug and Play
Support ACPI and OS directed power management |
|
Storage system |
Two PCI
Master IDE ports support up to 4 IDE devices
Support ATA 33/66/100
One Floppy port support up to two 3.5' or 5.25' floppy drives
(360K/720K/1.2M/1.44M/2.88M)
Support LS-120 floppy disk drive and ZIP drive |
|
I/O Feature |
2 high speed
Serial Ports (16550 Fast UART Compatible)
1 Enhanced Parallel Port support EPP/ECP/SPP
6 USB Support USB 2.0 (2 USB on back panel,4
USB on front header with optional cable)
1 PS/2 keyboard port
1 PS/2 mouse port
1 Speaker+ 1 Line in+ 1 Mic(Optional)
1 Game port(Optional)
1 RJ45port(Optional)
IrDA port support up to 115.2Kb/s transfer rate
All I/O ports can be enabled/disabled by BIOS setup |
|
AGP 4X Slot |
1 AGP 4X slot
|
|
Onboard Audio |
AC97
Codec,with 20-bit codec support
Support 5.1 channel audio (P1E-6A) |
|
Advanced Feature |
PCI 2.2
Specification compliant
Support OS soft-off
Wakeup on LAN
Wake up on Modem
Power-on by keyboard password
Trend ChipAway Virus on Guard
Norton AntiVirus 2002
Boot from USB Floppy |
|
QDI Innovative
Technology |
SpeedEasy II,
LogoEasyII,RecoveryEasyII,BIOS-ProtectEasy,BootEasy,StepEasyII |
|
Power management |
Support
ACPI(Advance configration and power interface) and ODPM(OS Directed Power
Management)
CPU temperature, System temperature, CPU fan speed,
Chassis fan speed, 8 System Voltages
Power Management
ACPI v1.0 and APM Compliant
Support S0(full-on),S1(power on suspend),S3(suspend to RAM),S5(soft-off)
ACPI power status |
|
LAN |
82559
built-in ICH4,82562ET PHY |
|
Board Size |
MATX: 244mm X 244mm |
