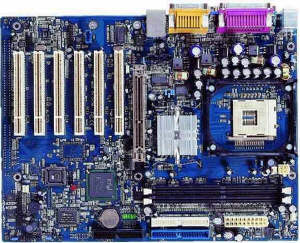

PlatiniX
8 |
 |
|
ITEM
|
DETAIL
|
|
Chipset |
Intel
845G chipset: 845G + ICH4 |
|
Slots |
1 AGP (Optional) + 6 PCI |
|
CPU |
Supports
Intel® Pentium 4(Willamette) socket 478 processors at 1.4/1.5/1.6/1.7/1.8/1.
9/2.0 GHz at 400 MHz FSB
Supports Intel® Pentium 4(Northwood) socket 478 processors at
1.6A/1.8A/2.0A/2.2/
2.4GHz and above at 400 MHz FSB
Supports Intel® Pentium 4(Northwood) socket 478 processors at 2.26/2.4/2.53
GHz
and above at 533 MHz FSB
Supports 400/533MHz host bus speed |
|
System Memory |
Provides two 184-pin DDR DIMM sockets
Supports DDR 200/266 SDRAM
The largest total memory is up to 2GB |
|
Bus Speed |
Support
400/533MHz |
|
BIOS |
2 Mbit
firmware Hub
Licensed advanced Award (phoenix) BIOS
Support Plug and Play
Support ACPI and OS directed power management |
|
Storage system |
Two PCI
Master IDE ports support up to 4 IDE devices
Support ATA 33/66/100
One Floppy port support up to two 3.5' or 5.25' floppy drives
(360K/720K/1.2M/1.44M/2.88M)
Support LS-120 floppy disk drive and ZIP drive |
|
I/O Feature |
2 high speed
Serial Ports (16550 Fast UART Compatible)
1 Enhanced Parallel Port support EPP/ECP/SPP
6 USB support USB2.0, operates at 480Mbps,(2 on
back panel,4 on front header with optional cable)
1 PS/2 keyboard port
1 PS/2 mouse port
1 Speaker+ 1 Line in+ 1 Mic (Optional)
1 Game port (Optional)
1 RJ45 port (Optional)
IrDA port support up to 115.2Kb/s transfer rate
All I/O ports can be Enabled/Disabled by BIOS setup |
|
AGP 4X Slot |
Integrated
Intel© Extreme Graphics 2D/3D graphics accelerator, 256 bit graphics core ,
provides a VGA port
AGP 1.5V Connector supports AGP 2.0 including AGP 4x data transfers
Supports Intel AGP Digital Display(ADD) card (Optional) |
|
Onboard Audio |
AC' 97 Audio
(optional)
AC' 97 2.1 Specification Compliant
lProvides onboard Line-in Jack, Microphone-in Jack, Speaker-out Jack and
MIDI/Joystick Connector |
|
Advanced Feature |
PCI 2.2
Specification compliant
Support OS soft-off
Wakeup on LAN
Wake up on Modem
Power-on by keyboard password
Trend ChipAway Virus on Guard
Norton AntiVirus™ 2002 |
|
QDI Innovative Technology |
RecoveryEasyII, BIOS-ProtectEasy, LogoEasyII,
BootEasy, StepEasyII (Optional), SpeedEasyII (Optional), Hardware Doctor,
Triple protection for CPU |
|
Power management |
Support ACPI
(Advance configration and power interface) and ODPM (OS Directed Power
Management)
CPU temperature, System temperature, CPU fan speed,
Chassis fan speed, 8 System Voltages
Power Management
ACPI V1.0 and APM Compliant
Support S0 (full-on),S1 (power on suspend),S3 (suspend to RAM),S5 (soft-off)
ACPI power status |
|
LAN |
Optional for
P8-L |
|
Board Size |
ATX: 305mm x 232mm |
