Sound Blaster
Audigy
|
产品名称
|
包装图片
|
内部部件照片
|
盒内硬件
|
| SB Audigy
Value 2001年11月上市 （无SB1394接口） |
|
|

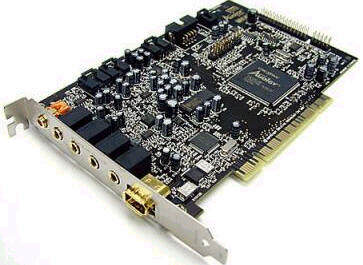

型号为SB0162的板卡
数字音频线、模拟音频线 Creative Logo贴纸 |
| SB Audigy 豪华版
2001年9月上市 （含SB1394接口） |
|
|
型号为SB0090的板卡
数字音频线、模拟音频线 游戏杆端口/MIDI接口支架 Creative Logo贴纸 |
| SBAudigy 白金版
2001年9月上市 （含SB1394接口） |
|
|
型号为SB0090的板卡、Creative Logo贴纸 数字音频线、模拟音频线 游戏杆端口/MIDI接口支架 Sound Blaster
Audigy Drive (内置、带有红外遥控接收器)、遥控器及电池、SB1394内部连接线、专用电源线、至Sound Blaster Audigy
Platinum 卡的连线、用以固定 Sound Blaster Audigy Drive 的螺钉、Mini MIDI 接口至标准 MIDI
接口的适配器缆线 |
| SBAudigy 白金版eX
2001年9月上市 （含SB1394接口） |
|
|
型号为SB0090的板卡、扩展子卡、Creative Logo贴纸 数字音频线、模拟音频线 Sound Blaster Audigy Drive
(外置、带有红外遥控接收器)、遥控器及电池、SB1394内部连接线、专用电源线、子卡至Sound Blaster Audigy Platinum
卡的连线、、Mini MIDI 接口至标准 MIDI 接口的适配器缆线、、用于连接子卡和外置Drive的数字信号线、外置drive的橡胶垫4个
|
|
产品名称
|
Audigy
产品的共同技术特点
|
SB Audigy
Value |
Audigy产品的主要特性
|
一、AUDIGY ADVANCED HD 的音频结构带给您数字音频体验的巨大飞跃Audigy
的处理模块能同时实现多达四种环境音效的多路实时处理。高性能的32位、
64声道混音的处理引擎能够最大程度的优化复杂的数字音频信号的混音及处理，同时确保了如水晶般清澈纯真的音频保真。 Audigy
的输出模块集成高品质的24位/96kHz 多声道数模转换器，确保了惊人的100dB信噪比音频回放。
二、惊人的24位多声道音频 无论您听MP3 还是音乐 CD， Sound Blaster Audigy集成的24位/96kHz数模转换器提供了惊人的24位、100
dB多声道音频，将音频清晰度推向了全新的境界。 有了她，您音乐欣赏的体验马上就不同了。
乐器的音色似乎更丰富了，声场似乎更宽了，您甚至于能够感受到演唱者的形象。
三、畅快的超高解析度EAX ADVANCED HD 游戏 利用强劲的 Audigy 处理芯片处理多重效果， Sound Blaster Audigy通过引入如多环境效果这样的超高解析度音频特性将游戏带入了全新的境界。
通过 EAX ADVANCED HD， 游戏中您将体验到户外超级真实的音效和室内丰富细节的声效。
四、高性价比的家庭录音工作室解决方案Sound Blaster Audigy提供了全面的音频、视频创作家庭工作室解决方案。 您可以利用其ASIO
支持特性实现低延时的多轨录音。 同时 SoundFont 2.1 技术为您带来高质量的丰富乐器音色，能极大地提高您作品的表现力。
|
SB Audigy
豪华版 |
SB Audigy
白金版 |
超高解析度游戏音频处理
|
全新的 EAX
ADVANCED HD 游戏音效库将游戏的声学效果推到了一个崭新的境界。
多环境技术（Multi-Environment）同时实现多达4个复杂环境的音效实时渲染。
环境移位技术（Environment Panning）使您领略到不断接近的或遥远的环境效果的空间感和定位感。
环境反射技术（Environment Reflections ）还原自然界中各种从3D空间中的平面反射回来的声音效果。
环境过滤技术（Environment Filtering ）实现了无论是在室内环境还是户外环境中高通音频滤波器的高精度仿真。
环境过渡技术（Environment Morphing）让您感受从一种环境效果转换为另一种环境效果时每一个音频元素其声音效果的自然过渡。
|
SB Audigy
白金版eX |
超高解析度音乐处理
|
EAX 超高解析度（EAX
ADVANCED HD） 的音乐技术还保证了高品质的声音。
音频去噪（Audio Cleanup）将MP3或旧磁带中令人讨厌的'嘶嘶'声和爆音彻底清除。
Dream（增强音频音乐动态重定位）通过改变特定频率范围声音的3D定位，由立体声音源创作出奇妙的迪斯科效果的环绕声音。 时间缩放技术（Time
Scaling） 在丝毫不改变音调和音质的情况下轻松调节音乐播放的速度。音乐的播放由于采用了设计独特的 EAX ADVANCED HD
技术而具有多样性。 |
Sound Blaster
Audigy Platinum
技术规格
32位专业品质效果引擎
的Audigy
专利效果处理器
支持实时数字效果，可对任何音源实现混响、合声、Normalizer、变调或失真等效果处理
使用多达 131
个可用硬件通道，对音频流进行处理、混音和定位
完全的32位数字混音器确保在数字状态下进行混音，消除信号中的噪音
高精度音频品质
- 以各自不同的采样率实现64个音频通道的回放
- 48kHz
采样率下，24位模数转换器用于模拟音源输入
- 48kHz
采样率下，24位数模转换器用于模拟5.1音箱输出
- 在8,
11.025, 16,22.05, 24, 32, 44.1 和
48kHz
采样率下以16位方式录音
- 支持 Sony/Philips
数字接口(SPDIF)
格式
- 支持最高24位/96kHz的音频信号输入
- 44.1, 48
或 96kHz
可选采样率，最高24位位解析率下的SPDIF
output
支持ASIO标准的低延时多轨录音
- 识别经由SPDIF接口传输的
AES-EBU
数据格式
EAX ADVANCED HD 高品质音频及3D音频技术
- 用户可选的设置，可针对麦克风、2、4
或 5.1
音箱系统进行优化
- Dolby
数码音频解码以模拟或数字模式输出至5.1音箱
- 可升级的 3D
音频架构
- 游戏中硬件加速EAX
ADVANCED HD
- Creative
多音箱环绕 （CMSS）
技术可将任意的单声道或立体声音源处理为 360
度的音效
- EAX
预置效果-用户可选、模拟声学环境的
DSP
模式
- 高级的时间缩放技术在不改变声音频率的情况下调节曲目播放的速度
- 音频降噪功能去除录音磁带的背景噪声及CD光盘爆音
逼真的波表合成器
的 Audigy
音乐合成引擎
64硬件复音，Creative获得专利的8点插值技术，将失真降至最低水平
SoundFont技术提供用户可设的波表样本设置
理论上在系统内存中可装载任意大小的音色库用于专业音乐制作(系统内存空间大小的一半可用于装载音色库)
可动态管理的 PCI
波表合成架构
48个MIDI通道，128种GM&GS兼容乐器和10套打击乐器
SB1394 连接
- 以最高400Mbps
的传输率高速连接IEEE1394
设备
- SB1394
兼容程序确保相关设备与Sound
Blaster Audigy兼容
- 支持热插拔，外置设备轻松连接
MIDI 接口/游戏杆接口
- 支持数字、模拟及 DirectInput
游戏设备
- 通过Sound
Blaster Audigy Drive同时支持两个MIDI设备
Sound Blaster Audigy 板载连接端口
- 模拟 /
数字输出(模拟中置及低音炮
/
6 声道S/PDIF输出)
线性输入
- 麦克风输入
- 线性输出 (前置)
/ 耳机输出
- 线性输出 (后置)
- SB1394
接口
- 电话应答设备输入
- 模拟 CD
音频输入
- 数字 CD
音频输入
- 用于外接MIDI及游戏杆端口信号的15针扩展头
- 用于连接Sound
Blaster Audigy Drive 的内部SB1394扩展头
- 用于 Sound
Blaster Audigy Drive的扩展头
Sound Blaster Audigy Drive 前面板连接端口
输入/输出
(RCA/同轴插孔)
耳机输出 (带有音量控制的
1/4
英寸立体声插孔)
线性输入(1/4
英寸立体声插孔,与麦克风输入2共用)
麦克风输入 2
(带有增益控制的 1/4
英寸插孔)
MIDI 输入 (mini
接口)
MIDI 输出 (mini
接口)
光纤 SPDIF
输入/输出
立体声辅助输入 (2
x RCA/同轴插孔)
SB1394 接口
红外接收器
在如下标准下运行
- Windows 98*/98SE, NT4.0, 2000
和Millennium
Edition
Sound Blaster MIDI 和 General
MIDI
即插即用
Sound Blaster PCI
EAX ADVANCED HD
EAX
Microsoft DirectSound, DirectSound3D及其衍生技术
兼容 PCI
2.1
兼容 AC'97
Dolby Digital
ASIO
Sound Blaster Audigy 音频性能
- 信噪比=
100 dB (A-Weighted)
信号串扰=
-100 dB (左右声道之间)
谐波失真=
0.004 % at 1kHz (A-Weighted)
频率响应=
<10 Hz to 22 kHz at -3 dBr
以上指标基于回放数字信号转换为模拟输出时的测试结果(如
CDDA,
WAV, MP3, Dolby Digital)
|
| SOUND
BLASTER AUDIGY PLATINUM |
|
| Feature |
Description |
|
MIDI Features |
| Synthesizer
Chip |
Audigy |
| Synthesizer
Type |
Wavetable |
| Polyphony |
64 (with
8-point interpolation) |
| RAM size |
Based on
System RAM, up to 1GB |
| Sample Sets |
4 and 8 MB |
| Synthesizer
Effects |
Reverb,
Chorus, Flanger, Pitch Shifter, Distortion, etc |
| MIDI
Channels |
48 |
| Effects
Engine |
32-bit |
|
Digital Audio Features |
| Duplex Type |
Full |
| Max.
Recording Depth |
16-bit |
| Max.
Recording Rate |
48kHz |
| Max.
Playback Depth |
24-bit |
| Max.
Playback Rate |
96kHz |
|
Signal-to-Noise Ratio |
100dB |
| Soundfont
Support |
Yes,
including Soundfont 2.1 |
| Built-in
Amplifier |
No |
|
Compatibility |
| Windows XP |
Downloadable |
| Windows ME |
Yes |
| Windows 2000 |
Yes |
| Windows 98 |
Yes (Win
98SE required for SB1394 support) |
| Windows 95 |
No |
| Windows NT
4.0 |
Yes |
| Windows 3.x |
No |
| DOS |
Yes |
| Linux |
Yes (Open
Source driver required) |
| General MIDI |
Yes |
| MPC3 |
Yes |
| Plug & Play |
Yes |
| Sound
Blaster PCI |
Yes |
| EAX Support |
Yes |
| Microsoft
DirectSound |
Yes |
| Microsoft
DirectSound 3D & Derivatives |
Yes |
| PCI 2.1 |
Yes |
| AC97 |
Yes |
| MPU-401 UART |
Yes |
|
Dolby?Digital 5.1 decoding |
Yes |
| EAX Advanced
HD |
Yes |
| ASIO Support |
Yes |
|
Connectors |
| Microphone
In |
Yes |
| Line In |
Yes |
| Line Out
(Front)/Speaker Out |
Yes |
| Line Out
(Rear) |
Yes |
|
MIDI/Joystick Port |
Yes, as a
separate attachment |
| MPC3 CD
Audio In |
Yes |
| Auxiliary In |
Yes |
| S/PDIF In |
Yes (on
AudigyDrive) |
| Telephone
Answering Device (TAD) In |
Yes |
| 24-bit DAC
(Digital to Analog Convertor) |
Yes |
| 24-bit ADC
(Analog to Digital Convertor) |
Yes |
|
Analog/Digital Out |
Yes (Analog:
Center & Subwoofer / Digital : 6-channel S/PDIF) |
| Digital DIN
Support |
Yes |
| SB1394
Connector |
Yes |
| CD Digital
In |
Yes |
|
Others |
| 4 Speaker
Support |
Yes |
| Creative
MultiSpeaker Surround |
Yes |
| Creative
Environments |
Yes |
| 5.1 Speaker
Support |
Yes |
| Headphone
Support |
Yes |
| Front/Rear
Speaker Level Adjustment |
Yes |
| Center
Speaker Level Adjustment |
Yes |
| Subwoofer
Level Adjustment |
Yes |
| Crossover
Frequency Adjustment |
Yes (10 -
200Hz) |
| CreativeWare
Program Elilgibility |
Yes |
| Dolby
Digital 5.1 Pass-through |
Yes (with
Dolby Digital-capable softDVD player) |
| DTS
pass-through |
Yes (with
DTS-capable softDVD player) |
|
AudigyDrive |
| AudigyDrive |
Yes,
Internal |
| S/PDIF Out |
Yes |
| Optical In |
Yes |
| Optical Out |
Yes |
| Aux In 2 |
Yes |
| Headphone
Out |
Yes |
| Line In 2 |
Yes |
| Mic In 2 |
Yes (shared
with Line In 2). Supports both dynamic and condenser types. |
| InfraRed
Receiver |
Yes |
| Bundled
InfraRed Remote Control |
Yes |
| Batteries
Included |
Yes |
| SOUND
BLASTER AUDIGY PLATINUM EX |
|
| Feature |
Description |
|
MIDI Features |
| Synthesizer
Chip |
Audigy |
| Synthesizer
Type |
Wavetable |
| Polyphony |
64 (with
8-point interpolation) |
| RAM size |
Based on
System RAM, up to 1GB |
| Sample Sets |
4 and 8 MB |
| Synthesizer
Effects |
Reverb,
Chorus, Flanger, Pitch Shifter, Distortion, etc |
| MIDI
Channels |
48 |
| Effects
Engine |
32-bit |
|
Digital Audio Features |
| Duplex Type |
Full |
| Max.
Recording Depth |
16-bit |
| Max.
Recording Rate |
48kHz |
| Max.
Playback Depth |
24-bit |
| Max.
Playback Rate |
96kHz |
|
Signal-to-Noise Ratio |
100dB |
| Soundfont
Support |
Yes,
including Soundfont 2.1 |
| Built-in
Amplifier |
No |
|
Compatibility |
| Windows XP |
Downloadable |
| Windows ME |
Yes |
| Windows 2000 |
Yes |
| Windows 98 |
Yes (Win
98SE required for SB1394 support) |
| Windows 95 |
No |
| Windows NT
4.0 |
Yes |
| Windows 3.x |
No |
| DOS |
Yes |
| Linux |
Yes (Open
Source driver required) |
| General MIDI |
Yes |
| MPC3 |
Yes |
| Plug & Play |
Yes |
| Sound
Blaster PCI |
Yes |
| EAX Support |
Yes |
| Microsoft
DirectSound |
Yes |
| Microsoft
DirectSound 3D & Derivatives |
Yes |
| PCI 2.1 |
Yes |
| AC97 |
Yes |
| MPU-401 UART |
Yes |
|
Dolby?Digital 5.1 decoding |
Yes |
| EAX Advanced
HD |
Yes |
| ASIO Support |
Yes |
|
Connectors |
| Microphone
In |
Yes |
| Line In |
Yes |
| Line Out
(Front)/Speaker Out |
Yes |
| Line Out
(Rear) |
Yes |
|
MIDI/Joystick Port |
Yes, as a
separate attachment |
| MPC3 CD
Audio In |
Yes |
| Auxiliary In |
Yes |
| S/PDIF In |
Yes(on
AudigyDrive) |
| Telephone
Answering Device (TAD) In |
Yes |
| 24-bit DAC
(Digital to Analog Convertor) |
Yes |
| 24-bit ADC
(Analog to Digital Convertor) |
Yes |
|
Analog/Digital Out |
Yes (Analog:
Center & Subwoofer / Digital : 6-channel S/PDIF) |
| Digital DIN
Support |
Yes |
| SB1394
Connector |
Yes |
| CD Digital
In |
Yes |
|
Others |
| 4 Speaker
Support |
Yes |
| Creative
MultiSpeaker Surround |
Yes |
| Creative
Environments |
Yes |
| 5.1 Speaker
Support |
Yes |
| Headphone
Support |
Yes |
| Front/Rear
Speaker Level Adjustment |
Yes |
| Center
Speaker Level Adjustment |
Yes |
| Subwoofer
Level Adjustment |
Yes |
| Crossover
Frequency Adjustment |
Yes (10 -
200Hz) |
| CreativeWare
Program Elilgibility |
Yes |
| Dolby
Digital 5.1 Pass-through |
Yes (with
Dolby Digital-capable softDVD player) |
| DTS
pass-through |
Yes (with
DTS-capable softDVD player) |
|
AudigyDrive |
| AudigyDrive |
Yes,
External |
| S/PDIF Out |
Yes |
| Optical In |
Yes |
| Optical Out |
Yes |
| Aux In 2 |
Yes |
| Headphone
Out |
Yes |
| Line In 2 |
Yes |
| Mic In 2 |
Yes (shared
with Line In 2). Supports both dynamic and condenser types. |
| InfraRed
Receiver |
Yes |
| Bundled
InfraRed Remote Control |
Yes |
| Batteries
Included |
Yes |
| SOUND
BLASTER AUDIGY DIGITAL ENTERTAINMENT |
|
| Feature |
Description |
|
MIDI Features |
| Synthesizer
Chip |
Audigy |
| Synthesizer
Type |
Wavetable |
| Polyphony |
64 (with
8-point interpolation) |
| RAM size |
Based on
System RAM, up to 1GB |
| Sample Sets |
4 MB |
| Synthesizer
Effects |
Reverb,
Chorus, Flanger, Pitch Shifter, Distortion, etc |
| MIDI
Channels |
48 |
| Effects
Engine |
32-bit |
|
Digital Audio Features |
| Duplex Type |
Full |
| Max.
Recording Depth |
16-bit |
| Max.
Recording Rate |
48kHz |
| Max.
Playback Depth |
24-bit |
| Max.
Playback Rate |
96kHz |
|
Signal-to-Noise Ratio |
100dB |
| Soundfont
Support |
Yes,
including Soundfont 2.1 |
| Built-in
Amplifier |
No |
|
Compatibility |
| Windows XP |
Downloadable |
| Windows ME |
Yes |
| Windows 2000 |
Yes |
| Windows 98 |
Yes (Win
98SE required for SB1394 support) |
| Windows 95 |
No |
| Windows NT
4.0 |
Yes |
| Windows 3.x |
No |
| DOS |
Yes |
| Linux |
Yes (Open
Source driver required) |
| General MIDI |
Yes |
| MPC3 |
Yes |
| Plug & Play |
Yes |
| Sound
Blaster PCI |
Yes |
| EAX Support |
Yes |
| Microsoft
DirectSound |
Yes |
| Microsoft
DirectSound 3D & Derivatives |
Yes |
| PCI 2.1 |
Yes |
| AC97 |
Yes |
| MPU-401 UART |
Yes |
|
Dolby?Digital 5.1 decoding |
Yes |
| EAX Advanced
HD |
Yes |
| ASIO Support |
Yes |
|
Connectors |
| Microphone
In |
Yes |
| Line In |
Yes |
| Line Out
(Front)/Speaker Out |
Yes |
| Line Out
(Rear) |
Yes |
|
MIDI/Joystick Port |
Yes, as a
separate attachment |
| MPC3 CD
Audio In |
Yes |
| Auxiliary In |
Yes |
| S/PDIF In |
No |
| Telephone
Answering Device (TAD) In |
Yes |
| 24-bit DAC
(Digital to Analog Convertor) |
Yes |
| 24-bit ADC
(Analog to Digital Convertor) |
Yes |
|
Analog/Digital Out |
Yes (Analog:
Center & Subwoofer / Digital : 6-channel S/PDIF) |
| Digital DIN
Support |
Yes |
| SB1394
Connector |
Yes |
| CD Digital
In |
Yes |
|
Others |
| 4 Speaker
Support |
Yes |
| Creative
MultiSpeaker Surround |
Yes |
| Creative
Environments |
Yes |
| 5.1 Speaker
Support |
Yes |
| Headphone
Support |
Yes |
| Front/Rear
Speaker Level Adjustment |
Yes |
| Center
Speaker Level Adjustment |
Yes |
| Subwoofer
Level Adjustment |
Yes |
| Crossover
Frequency Adjustment |
Yes (10 -
200Hz) |
| CreativeWare
Program Elilgibility |
Yes |
| Dolby
Digital 5.1 Pass-through |
Yes (with
Dolby Digital-capable softDVD player) |
| DTS
pass-through |
Yes (with
Dolby Digital-capable softDVD player) |
|
AudigyDrive |
| AudigyDrive |
No |
|
